[1]:
from experiments.partial import build_partial, plot_partial, pretrain_partial
from pathlib import Path
import numpy as np
from alfi.datasets import DrosophilaSpatialTranscriptomics, HomogeneousReactionDiffusion
from alfi.trainers import PartialPreEstimator
from alfi.plot import plot_spatiotemporal_data
from alfi.plot.misc import plot_variational_dist
from alfi.utilities.torch import spline_interpolate_gradient, softplus
from alfi.utilities.data import dros_ground_truth
from alfi.models import TrainMode
from matplotlib import pyplot as plt
import torch
[2]:
drosophila = True
if drosophila:
gene = 'gt'
dataset = DrosophilaSpatialTranscriptomics(
gene=gene, data_dir='../../../data', scale=True, disc=1)
params = dict(lengthscale=[20, 10],
**dros_ground_truth(gene),
parameter_grad=False,
warm_epochs=-1,
natural=True,
zero_mean=True,
clamp=True)
disc = dataset.disc
else:
data = 'toy-spatial'
dataset = HomogeneousReactionDiffusion(data_dir='../../../data')
params = dict(lengthscale=0.2,
sensitivity=1,
decay=0.1,
diffusion=0.01,
parameter_grad=False,
warm_epochs=-1,
natural=False,
clamp=False)
disc = 1
model_name = '0savedmodel'
# model_name = 'epoch165'
# model_name = 'model_with_3'
lfm, trainer, plotter = build_partial(
dataset,
params)#,
# reload=f'../../../experiments/{data}/partial/{model_name}')
lfm.gp_model.covar_module.lengthscale
tx torch.Size([2, 512])
x dp is set to tensor(1., dtype=torch.float64)
[2]:
tensor([[[20.0000, 10.0000]]], dtype=torch.float64, grad_fn=<SoftplusBackward>)
[3]:

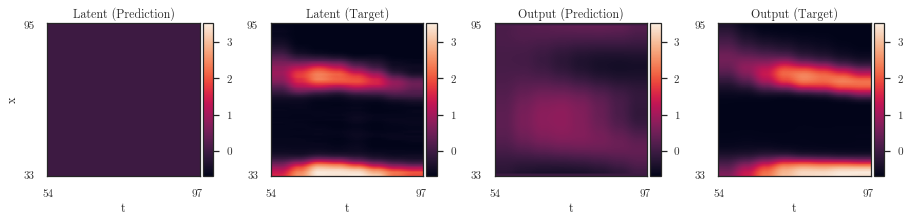

plot_partial(dataset, lfm, trainer, plotter, Path('./'), params)
'cmunrm.otf' can not be subsetted into a Type 3 font. The entire font will be embedded in the output.
[4]:
pretrain_partial(dataset, lfm, trainer, params);
/Users/jacob/Documents/proj/torchcubicspline/torchcubicspline/interpolate.py:277: UserWarning: input value tensor is non-contiguous, this will lower the performance due to extra data copy when converting non-contiguous tensor to contiguous, please use contiguous input value tensor if possible (Triggered internally at ../aten/src/ATen/native/BucketizationUtils.h:25.)
index = torch.bucketize(t.detach(), self._t) - 1
num training 153
Epoch 001/080 - Loss: 0.33 (0.33 0.00) kernel: [[[19.97002649 9.97001707]]]
Epoch 011/080 - Loss: 0.29 (0.29 0.00) kernel: [[[19.83236085 9.88488189]]]
Epoch 021/080 - Loss: 0.26 (0.26 0.00) kernel: [[[19.84878729 9.88612257]]]
Epoch 031/080 - Loss: 0.22 (0.22 0.00) kernel: [[[19.84549775 9.88469033]]]
Epoch 041/080 - Loss: 0.18 (0.18 0.00) kernel: [[[19.81529531 9.8859996 ]]]
Epoch 051/080 - Loss: 0.15 (0.15 0.00) kernel: [[[19.80628765 9.84551196]]]
Epoch 061/080 - Loss: 0.11 (0.11 0.00) kernel: [[[19.95258065 9.70803974]]]
Epoch 071/080 - Loss: 0.07 (0.07 0.00) kernel: [[[20.17451815 9.52854874]]]
[5]:
orig_data = dataset.orig_data.squeeze().t()
num_t_orig = orig_data[:, 0].unique().shape[0]
num_x_orig = orig_data[:, 1].unique().shape[0]
tx = trainer.tx
num_t = tx[0, :].unique().shape[0]
num_x = tx[1, :].unique().shape[0]
y_target = trainer.y_target[0]

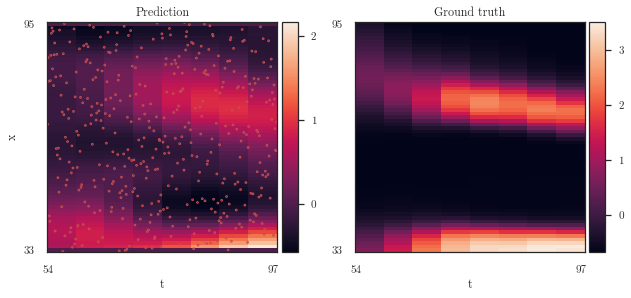

ind = lfm.inducing_points[0]
print(ind.shape)
plt.scatter(ind[:, 0], ind[:, 1])
print(trainer.train_mask.shape)
torch.Size([426, 2])
torch.Size([512])
[7]:
lfm.config.num_samples = 15
trainer.plot_outputs = True
lfm.set_mode(TrainMode.GRADIENT_MATCH)
trainer.train(10, report_interval=1);
Mean output variance: 0.03320894951911319
Test loss: 1.4794096017496434
prot Q2: 0.472
prot CA: 0.125
mrna Q2: 0.364
mrna CA: 0.260
Epoch 031/040 - Loss: 1.36 (0.45 0.45) kernel: [[[20.42225991 9.73779057]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03952920682363361
Test loss: 1.4994630875902755
prot Q2: 0.471
prot CA: 0.088
mrna Q2: 0.367
mrna CA: 0.260
Epoch 032/040 - Loss: 1.36 (0.45 0.46) kernel: [[[20.40797207 9.73344118]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.028518628460504944
Test loss: 1.4642968688948381
prot Q2: 0.472
prot CA: 0.096
mrna Q2: 0.363
mrna CA: 0.252
Epoch 033/040 - Loss: 1.34 (0.44 0.45) kernel: [[[20.39254882 9.72880339]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03655852999519911
Test loss: 1.5135292376463787
prot Q2: 0.442
prot CA: 0.092
mrna Q2: 0.366
mrna CA: 0.240
Epoch 034/040 - Loss: 1.38 (0.47 0.45) kernel: [[[20.37689017 9.72370622]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.0342211338421374
Test loss: 1.4491800478537793
prot Q2: 0.484
prot CA: 0.104
mrna Q2: 0.370
mrna CA: 0.229
Epoch 035/040 - Loss: 1.31 (0.43 0.45) kernel: [[[20.36080458 9.71814265]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03486932254055179
Test loss: 1.453298349301025
prot Q2: 0.477
prot CA: 0.113
mrna Q2: 0.372
mrna CA: 0.219
Epoch 036/040 - Loss: 1.33 (0.44 0.45) kernel: [[[20.34414317 9.71221889]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03088667803164573
Test loss: 1.4245052201165138
prot Q2: 0.497
prot CA: 0.115
mrna Q2: 0.376
mrna CA: 0.213
Epoch 037/040 - Loss: 1.30 (0.42 0.46) kernel: [[[20.32676365 9.70607156]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03064064191488642
Test loss: 1.4275427093133957
prot Q2: 0.495
prot CA: 0.111
mrna Q2: 0.379
mrna CA: 0.217
Epoch 038/040 - Loss: 1.31 (0.42 0.47) kernel: [[[20.30919435 9.69944014]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.03864007083503944
Test loss: 1.4195081004421124
prot Q2: 0.510
prot CA: 0.182
mrna Q2: 0.379
mrna CA: 0.211
Epoch 039/040 - Loss: 1.29 (0.41 0.47) kernel: [[[20.29108383 9.69284169]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
Mean output variance: 0.027265226956193447
Test loss: 1.4030025474400256
prot Q2: 0.512
prot CA: 0.135
mrna Q2: 0.380
mrna CA: 0.217
Epoch 040/040 - Loss: 1.29 (0.40 0.48) kernel: [[[20.27248088 9.68592694]]] s: 0.10020655891674712 dec: 0.10020655891674712 diff: 0.015900012764781094
[15]:
# for key in trainer.parameter_trace.keys():
# params = torch.stack(trainer.parameter_trace[key])
# for i in range(1, params.ndim):
# params = params.mean(-1)
# plt.figure()
# plt.plot(params)
[softplus(param) for param in lfm.fenics_parameters]
[15]:
[tensor([[0.0970]], dtype=torch.float64),
tensor([[0.0764]], dtype=torch.float64),
tensor([[0.0015]], dtype=torch.float64)]
[15]:
from alfi.plot import tight_kwargs

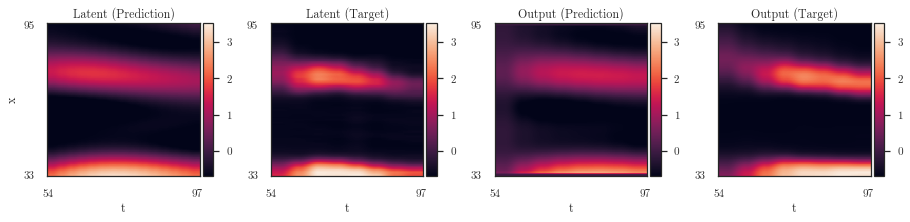

plot_partial(dataset, lfm, trainer, plotter, Path('./'), params)
# plt.savefig(Path('./') / f'kinetics-{gene}.pdf', **tight_kwargs)
'cmunrm.otf' can not be subsetted into a Type 3 font. The entire font will be embedded in the output.
[ ]:
from alfi.utilities.torch import q2, cia
f = lfm(tx)
f_mean = f.mean.detach()
f_var = f.variance.detach()
y_target = trainer.y_target[0]
def cia(y_test, f_mean, f_var):
return ((y_test >= (f_mean - 1 * f_var.sqrt())) &
(y_test <= (f_mean + 1 * f_var.sqrt()))).double().mean()
print(f_mean.shape, y_target.shape, f_var.shape)
print('Q2', q2(y_target.squeeze(), f_mean.squeeze()))
print('CA', cia(y_target.squeeze(), f_mean.squeeze(), f_var.squeeze()))
[ ]:
gp = lfm.gp_model(tx.t())
lf_target = orig_data[trainer.t_sorted, 2]
f_mean = gp.mean.detach().view(num_t, num_x)[::disc].reshape(-1)
f_var = gp.variance.detach().view(num_t, num_x)[::disc].reshape(-1)
print('Q2', q2(lf_target.squeeze(), f_mean.squeeze()))
print('CA', cia(lf_target.squeeze(), f_mean.squeeze(), f_var.squeeze()))
[16]:
lfm.save('./kr-2005')
[ ]:
lfm2, trainer2, plotter2 = build_partial(
dataset,
params,
reload='./kr-1205')
[ ]:
gp = lfm2.gp_model(tx.t())
lf_target = orig_data[trainer.t_sorted, 2]
f_mean = gp.mean.detach()
f_var = gp.variance.detach()
print('Q2', q2(lf_target.squeeze(), f_mean.squeeze()))
print('CA', cia(lf_target.squeeze(), f_mean.squeeze(), f_var.squeeze()))
[71]:
to_plot = list()
clims = list()
means = {'kr': False, 'kni': True, 'gt': False}
for gene in ['kr', 'kni', 'gt']:
dataset = DrosophilaSpatialTranscriptomics(
gene=gene, data_dir='../../../data', scale=True)
params = dict(lengthscale=10,
**dros_params[gene],
parameter_grad=False,
warm_epochs=-1,
natural=False,
zero_mean=means[gene],
clamp=True)
disc = dataset.disc
lfm, trainer, plotter = build_partial(
dataset,
params,
reload=f'../../../experiments/{gene}0')
lfm.eval()
tx = trainer.tx
num_t = tx[0, :].unique().shape[0]
num_x = tx[1, :].unique().shape[0]
orig_data = dataset.orig_data.squeeze().t()
num_t_orig = orig_data[:, 0].unique().shape[0]
num_x_orig = orig_data[:, 1].unique().shape[0]
disc = dataset.disc if hasattr(dataset, 'disc') else 1
f = lfm(tx, step=disc)
f_mean = f.mean.detach()
f_var = f.variance.detach()
y_target = trainer.y_target[0]
ts = tx[0, :].unique().sort()[0].numpy()
xs = tx[1, :].unique().sort()[0].numpy()
extent = [ts[0], ts[-1], xs[0], xs[-1]]
l_target = orig_data[trainer.t_sorted, 2]
l = lfm.gp_model(tx.t())
l_mean = l.mean.detach()
to_plot.append([
l_mean.view(num_t, num_x).t(),
l_target.view(num_t_orig, num_x_orig).t(),
f_mean.view(num_t_orig, num_x_orig).t(),
y_target.view(num_t_orig, num_x_orig).detach().t(),
])
clims.append(([(l_target.min(), l_target.max())] * 2 + [(y_target.min(), y_target.max())] * 2))
tx torch.Size([2, 512])
x dp is set to tensor(1., dtype=torch.float64)
tx torch.Size([2, 456])
x dp is set to tensor(1., dtype=torch.float64)
tx torch.Size([2, 512])
x dp is set to tensor(1., dtype=torch.float64)

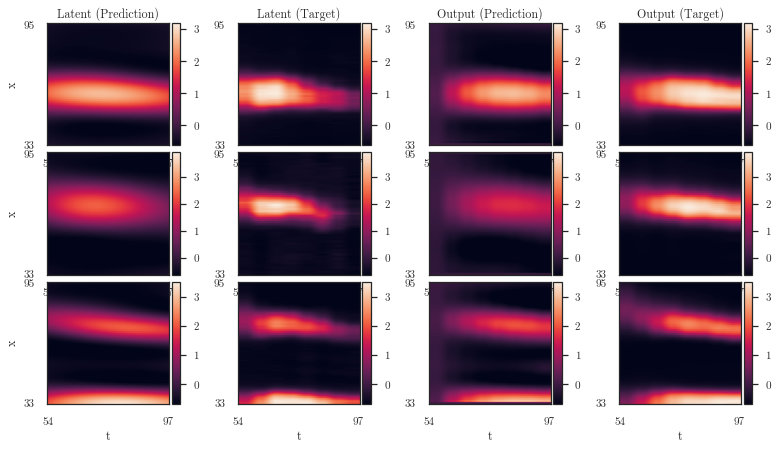

[72]:
clim = [*clims[0], *clims[1], *clims[2]]
plots = [*to_plot[0], *to_plot[1], *to_plot[2]]
grid = plot_spatiotemporal_data(
plots,
extent,
nrows=3,
ncols=4,
titles=[
'Latent (Prediction)', 'Latent (Target)',
'Output (Prediction)', 'Output (Target)',] + ['']*8,
cticks=None, # [0, 100, 200]
clim=clim
)
plt.gca().get_figure().set_size_inches(15, 7)
for i in range(8):
grid[i].set_xticks([])
grid[i].set_xlabel(None)
for i in range(8, 12):
grid[i].set_xticks([np.ceil(extent[0]), np.floor(extent[1])])
plt.savefig('dros_combined.pdf', **tight_kwargs)
'cmunrm.otf' can not be subsetted into a Type 3 font. The entire font will be embedded in the output.
[58]:
[58]:
<mpl_toolkits.axes_grid1.mpl_axes.Axes at 0x7fc687e41e10>
